AI Infrastructure and Evaluation

Use this page for the cloud-neutral production envelope around an AI system and the evaluation loop that proves changes are safe. AWS service mappings belong in AWS AI services.

1. Production reference architecture

user → identity → API/application → authorization → AI orchestrator
                                                    ├─ model gateway
                                                    ├─ retrieval
                                                    ├─ tools/workflows
                                                    ├─ policy/guardrails
                                                    └─ state/cache
                         ← validated response + citations + audit trace ←

• Identity proves who or what is calling.
• Authorization decides which model, document, tool, tenant, and operation the caller may use.
• AI orchestrator builds context, routes models, invokes retrieval/tools, applies policy, and records traces.
• Model gateway normalizes model access, quotas, timeouts, routing, fallback, and usage accounting.
• Retrieval layer supplies changing/private evidence and enforces document access.
• Tool/workflow layer performs deterministic operations and side effects.
• Guardrails/validators inspect requests and responses but do not replace identity, authorization, or domain rules.
• Observability/evaluation surrounds every component; it is not a final model-only check.

2. How companies set up GenAI

• These are maturity patterns, not mandatory migration stages.
• A company may use all four patterns at once for workloads with different risk and complexity.
• The important change is not merely replacing an API:
  • traditional applications keep intelligence inside code, rules, data, and narrow models;
  • early GenAI applications add a language model directly inside each product;
  • modern platforms centralize model access, retrieval, policy, evaluation, and observability;
  • agentic systems add bounded runtime tool choice where fixed workflows are insufficient.

2.1 Traditional software and predictive ML

• The application owns the business workflow and deterministic decisions.
• Search/databases provide facts; a narrow ML model may predict a score, class, forecast, or recommendation.
• The predictive model normally returns structured output rather than generating the user experience.
• Strengths:
  • explicit logic and permissions;
  • predictable tests and failure handling;
  • strong transaction boundaries.
• Limits:
  • natural-language interfaces and unstructured content require substantial custom code;
  • every new task needs rules, features, models, or workflow changes.

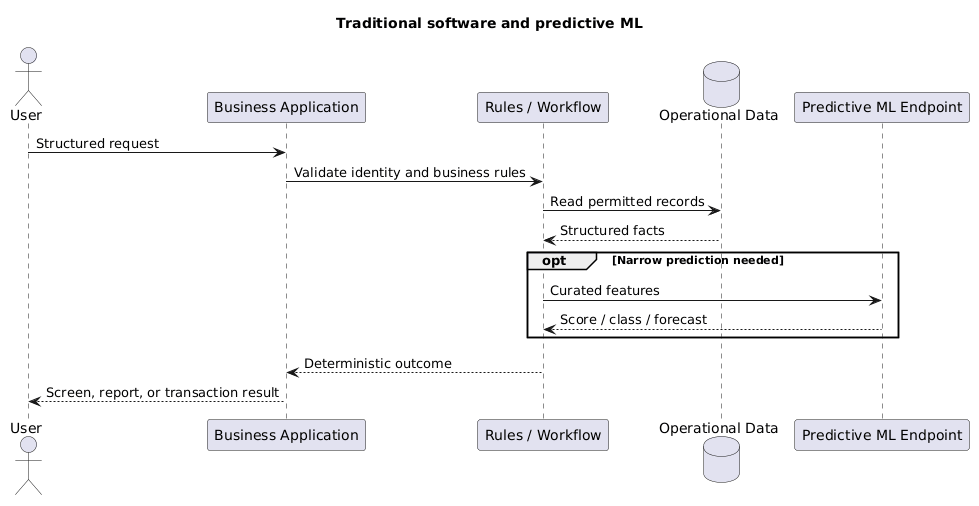

🏢 Traditional software and predictive ML

2.2 Early GenAI: direct model integration

• A product team calls a hosted LLM directly from its application backend.
• The application builds a prompt from user input and selected business data.
• This is useful for prototypes and one bounded use case.
• It becomes difficult at company scale because teams duplicate:
  • provider credentials and SDK integration;
  • prompt storage and model configuration;
  • safety filters and logging;
  • retrieval pipelines;
  • cost controls and evaluation;
  • fallback and model-upgrade work.
• Common failure: the prototype becomes production without proper authorization, data classification, regression tests, or ownership.

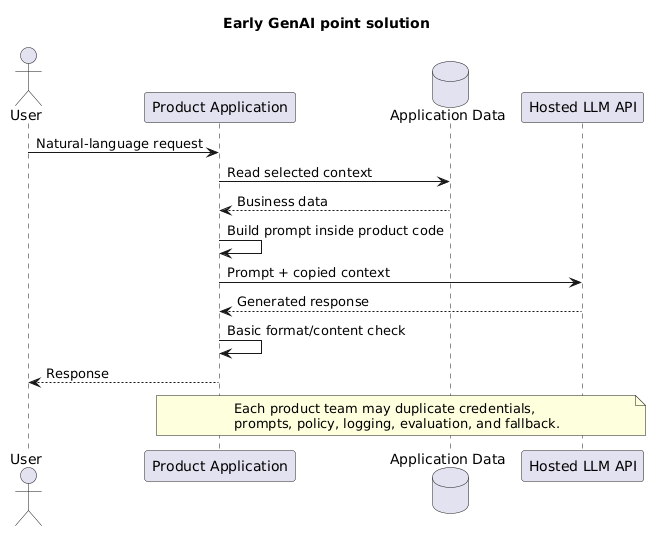

🚀 Early GenAI direct model integration

2.3 Modern enterprise GenAI platform

• Product teams own the user journey, domain workflow, acceptance criteria, and business outcome.
• A shared AI platform provides reusable controls:
  • model gateway and provider adapters;
  • identity propagation and policy enforcement;
  • approved prompt/model configuration;
  • retrieval and knowledge-source connectors;
  • tool registry and execution boundaries;
  • guardrails, tracing, token/cost accounting, and evaluation services.
• Security/data teams define classification, retention, model/provider approval, and high-impact action policy.
• Domain owners remain responsible for source quality and document permissions.
• The platform should be a paved road, not a central team that must build every AI feature.
• Avoid a universal orchestrator that hides all workload differences; allow product-specific flows behind shared policy and telemetry interfaces.

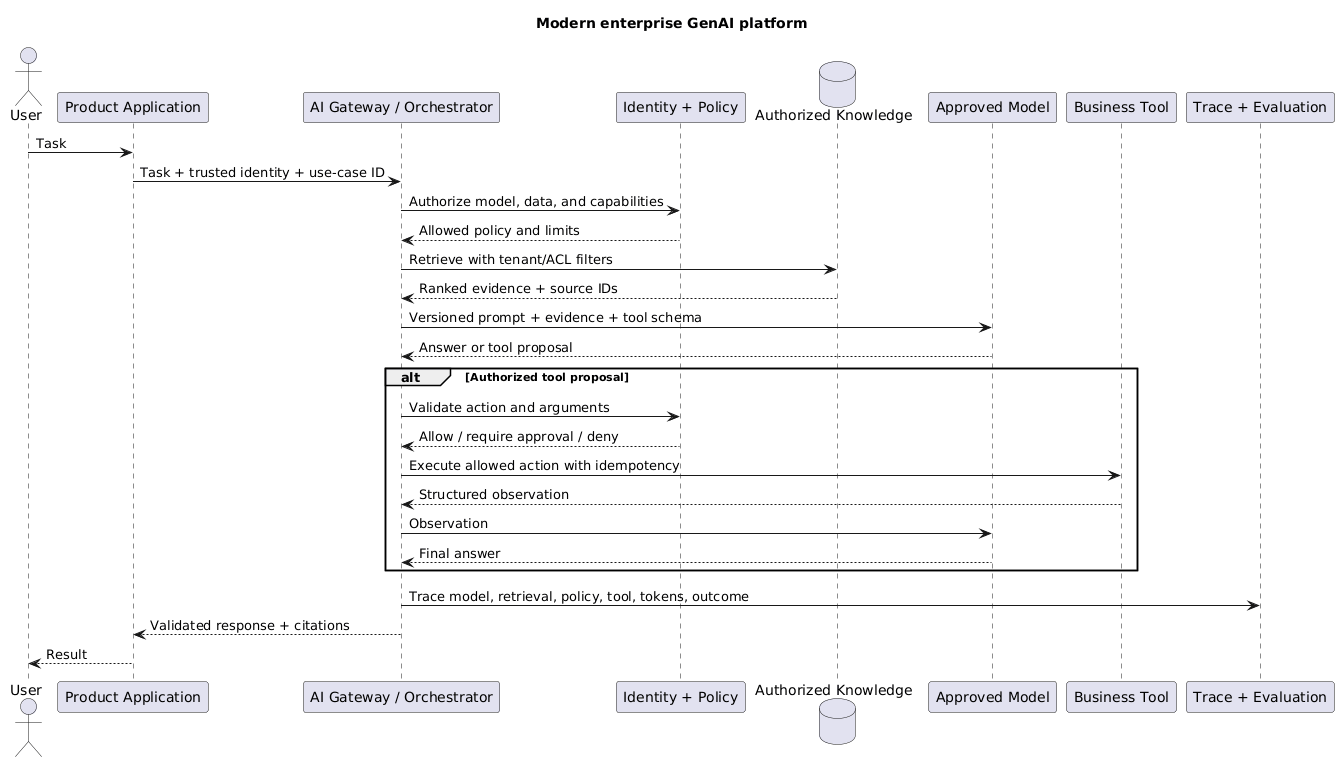

🏗️ Modern shared enterprise GenAI platform

2.4 Agentic extension

• An enterprise platform does not make every request agentic.
• Add an agent only when the path or tool choice genuinely depends on runtime observations.
• Keep:
  • deterministic outer workflow and termination states;
  • allowlisted narrow tools;
  • application-side authorization and validation;
  • durable state and idempotency;
  • approval for high-impact actions;
  • step, latency, token, and cost limits.
• See the complete PlantUML sequence in AI Agents.

2.5 Practical adoption path

bounded experiment
  → prove user value with an evaluation set
  → classify data and threat-model the flow
  → add identity, retrieval authorization, tracing, and cost limits
  → standardize repeated capabilities into a shared platform
  → add agentic tool choice only where deterministic workflows fail

• Centralize capabilities when several teams need the same control, not before the first use case is understood.
• Keep domain logic and source ownership close to the product/domain team.
• Measure adoption by completed business tasks, quality, risk, latency, and cost—not by number of model calls or chatbots launched.

3. Identity, authorization, and tenant isolation

• Authenticate users, services, jobs, and agent/tool identities.
• Use:
  • RBAC for stable job-function permissions;
  • ABAC for tenant, region, classification, resource ownership, and request context;
  • both when role grants need resource-specific constraints.
• Authorize every boundary:
  • API operation;
  • model and capability;
  • retrieved document/chunk;
  • tool and exact resource;
  • state/memory record;
  • generated file or external message.
• Tenant isolation controls:
  • derive tenant from trusted identity, not a prompt field;
  • include tenant ownership in primary data keys and policies;
  • apply retrieval filters before context reaches the model;
  • separate indexes, keys, networks, or accounts when risk demands stronger isolation;
  • fail closed when tenant/ACL metadata is missing;
  • run cross-tenant leakage tests.
• Prompt instructions are never an authorization boundary.

4. Networking and service boundaries

• Decide for every dependency whether access is:
  • public internet;
  • private service endpoint;
  • private network/peering;
  • controlled outbound proxy or egress gateway.
• Apply:
  • service-to-service authentication;
  • TLS in transit;
  • network allowlists and segmentation;
  • DNS and certificate validation;
  • explicit outbound destinations for tools and agents;
  • request/response size and timeout limits.
• Private networking reduces exposure; it does not fix excessive IAM permissions, prompt injection, or data leakage through an allowed destination.
• Treat model providers, vector stores, MCP servers, plugins, and external tools as separate trust boundaries.

5. Data protection and secrets

• Classify data before it enters prompts, indexes, fine-tuning datasets, caches, or logs.
• For PII, secrets, regulated data, and customer content:
  • minimize collection and prompt exposure;
  • redact, tokenize, or mask where the original value is unnecessary;
  • encrypt in transit and at rest;
  • define storage location, retention, deletion, and backup behaviour;
  • record data lineage and access;
  • review provider retention/training terms.
• Keep secrets out of:
  • prompts and retrieved chunks;
  • model-visible environment descriptions;
  • client code;
  • traces and error messages;
  • long-term agent memory.
• Use short-lived credentials and workload identity where possible; rotate stored secrets.
• Store complete sensitive payloads only when required. Prefer controlled references or redacted trace views.

6. AI-specific security threats

• Direct prompt injection: user asks the model to ignore policy.
• Indirect prompt injection: retrieved document, email, web page, or tool result contains malicious instructions.
• Data exfiltration: model sends sensitive context through a permitted tool, URL, or external message.
• Tool abuse: valid tool call performs an unauthorized or unsafe operation.
• Poisoning: attacker changes source documents, memory, evaluation data, or fine-tuning data.
• Model/supply-chain risk: compromised model artifact, container, library, MCP server, or parser.
• Denial of wallet/service: large prompts, recursive agents, repeated tools, or expensive model routes consume quotas and budget.
• Controls:
  • separate trusted instructions from untrusted content;
  • least privilege and narrow tools;
  • validate destinations and arguments outside the model;
  • require approval for high-impact actions;
  • sign/version artifacts and review dependencies;
  • apply token, time, step, request, and spend limits;
  • test attacks continuously, not only before launch.

7. Scalability and quota management

• Capacity planning must include:
  • concurrent requests;
  • input/output token rate;
  • provider/model quotas;
  • retrieval and reranking load;
  • tool/database limits;
  • queue depth and worker concurrency.
• Patterns:
  • rate-limit by user, tenant, model route, and cost risk;
  • place long-running/non-interactive work on queues;
  • use backpressure instead of unlimited retries;
  • batch embedding and offline inference where supported;
  • scale stateless orchestration horizontally;
  • partition hot tenants or workloads;
  • reserve/provision capacity only when utilization and SLA justify it.
• Watch correlated bursts: one user request may fan out into many retrieval queries, model calls, and tools.

8. Reliability and degraded modes

• Set deadlines for the full request and shorter timeouts for each dependency.
• Retry only transient failures:
  • use exponential backoff with jitter;
  • respect provider retry guidance;
  • bound attempts and remaining deadline;
  • never blindly retry non-idempotent side effects.
• Use circuit breakers to stop repeated calls to a failing dependency.
• Use idempotency keys and durable state for tool calls and asynchronous jobs.
• Test fallback semantics:
  • alternate model may lack tools, modalities, context, or schema support;
  • stale cache may be acceptable for one workload and unsafe for another;
  • “search only”, queued completion, or human escalation may be safer than a weaker answer.
• Design explicit degraded modes and tell the user when quality or freshness is reduced.

9. Latency engineering

total latency = network + identity + retrieval + reranking + context build
              + model input processing + model output generation + tools

• Measure p50, p95, and p99 for every component and end-to-end task.
• Optimize the actual bottleneck:
  • reduce network hops or use regional/private paths;
  • cache query-independent embeddings and stable results;
  • tune ANN candidate count and reranking depth;
  • remove duplicated/irrelevant context;
  • route simple tasks to smaller models;
  • parallelize only independent safe reads;
  • stream output for faster perceived response;
  • move long tasks to asynchronous jobs.
• Streaming improves time to first visible token but does not reduce total compute or make output safe before validation.
• Output tokens are sequential and often dominate generation latency; cap verbosity when the task allows it.

10. Cost engineering

• Include:
  • model input/output and reasoning tokens;
  • embeddings and reranking;
  • tool/API calls;
  • retries and agent loops;
  • storage, indexing, logs, and data transfer;
  • provisioned/idle accelerator or endpoint capacity;
  • human review and incident cost.
• Levers:
  • model routing and cascades;
  • shorter prompts and retrieved context;
  • output caps;
  • semantic/result/prefix caching where safe;
  • batch and asynchronous processing;
  • retrieval before expensive reasoning;
  • early termination for invalid or unauthorized requests.
• Measure cost per successful task, not only cost per request or token.
• Segment by tenant and task so a small expensive cohort is visible.

11. Observability

• Give each request one trace ID across:
  • identity and authorization decisions;
  • prompt/template and model version;
  • token counts and decoding configuration;
  • retrieved candidates, filters, scores, and citations;
  • reranker and routing decisions;
  • tool proposals, approvals, execution, and results;
  • retries, errors, latency, and cost;
  • user feedback and final outcome.
• Log metadata by default; store sensitive prompt/response payloads only with explicit access and retention controls.
• Operational signals:
  • error, timeout, throttle, and refusal rates;
  • p50/p95/p99 latency;
  • queue age and saturation;
  • quota headroom;
  • tool success and invalid arguments;
  • cost per completed task;
  • retrieval and groundedness indicators.
• A trace should make it possible to answer: which user, model, prompt, documents, tools, policy decisions, and configuration produced this outcome?

12. Evaluation architecture

change: prompt / model / parser / chunking / index / tool / policy
                                  ↓
versioned evaluation suite → compare baseline and slices → deploy or reject
                                  ↓
                      canary + production feedback

• Evaluation levels:
  • component: parser, retriever, reranker, classifier, schema validator, tool;
  • end-to-end: final answer or completed task;
  • security/safety: authorization, leakage, injection, refusal, harmful action;
  • operational: latency, throughput, quota, reliability, and cost.
• Build datasets from:
  • real anonymized tasks;
  • domain-expert examples;
  • known incidents and regressions;
  • difficult edge cases and adversarial inputs;
  • no-answer and permission-denied cases.
• Version:
  • dataset and rubric;
  • prompt/template;
  • model ID and parameters;
  • parser/chunk/index configuration;
  • tool schemas and software version.

13. Retrieval and generation metrics

• Retrieval metrics:
  • Recall@K: relevant evidence was available in the first K results;
  • Precision@K: returned evidence was relevant;
  • MRR: first relevant result appeared early;
  • NDCG: graded relevance was ordered well.
• Generation metrics:
  • correctness;
  • relevance;
  • completeness;
  • faithfulness/groundedness to supplied evidence;
  • citation entailment and source validity;
  • refusal and uncertainty behaviour;
  • schema and domain validity.
• Agent/tool metrics:
  • task completion;
  • correct tool and argument selection;
  • step count and loop termination;
  • side-effect correctness;
  • approval/escalation behaviour.
• Keep component metrics separate:
  • good final wording can hide poor retrieval;
  • high Recall@K can still produce an ungrounded answer;
  • schema validity can hide wrong values.

14. LLM-as-judge and human evaluation

• LLM judges are useful for scalable rubric-based scoring and pairwise comparison.
• Risks:
  • preference for verbosity or style;
  • position/order bias;
  • self/model-family agreement bias;
  • weak domain understanding;
  • sensitivity to rubric wording;
  • non-deterministic scores.
• Controls:
  • define observable rubric levels;
  • blind model identity and randomize answer order;
  • include calibrated examples;
  • compare multiple judges or deterministic checks;
  • measure agreement with expert humans;
  • manually review disagreements and high-impact failures.
• Human evaluation:
  • use domain experts for ambiguous or safety-sensitive tasks;
  • sample routine traffic;
  • provide consistent grading guidance;
  • track inter-rater agreement;
  • turn confirmed failures into regression cases.

15. Production evaluation and release gates

• Production outcomes:
  • task completion;
  • user correction and re-query;
  • abandonment and escalation;
  • citation usage;
  • tool success;
  • refusal override;
  • incident rate;
  • latency and cost per successful task.
• Segment by task, tenant, language, document type, risk, model route, and difficulty.
• Release process:
  • run offline regression suite;
  • reject security regressions regardless of average quality;
  • compare quality, latency, and cost against baseline;
  • canary or shadow on representative traffic;
  • monitor slices and rollback criteria;
  • promote only after evidence supports the change.
• Every production incident should create:
  • a root-cause category;
  • a reproducible test case;
  • a control or recovery improvement;
  • an observable alert where possible.

Continue with AI knowledge bases for retrieval tuning, AI agents for autonomous tool use, or AWS AI services for AWS mappings.
